Z&L Mounting Bracket: How to Install a Maglock on Glass Doors
Surface-mounted electromagnetic locks don’t fit directly on glass doors or narrow frames. The SK-ZL180 Z&L mounting bracket solves that — it adapts your 180kg maglock to glass doors, narrow aluminum frames and doors where direct mounting isn’t possible.
What Is a Z&L Bracket Set

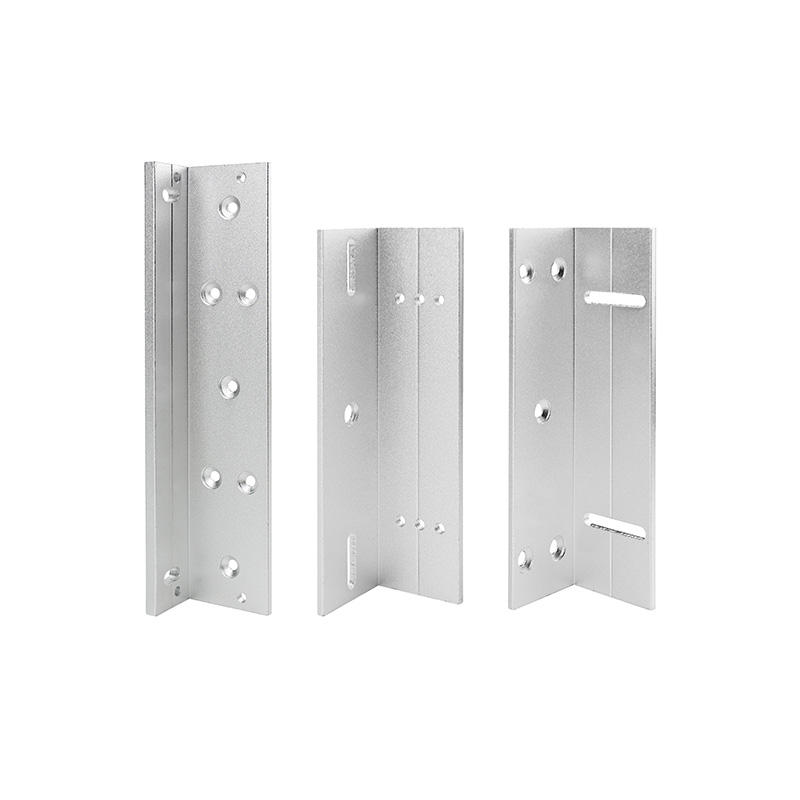

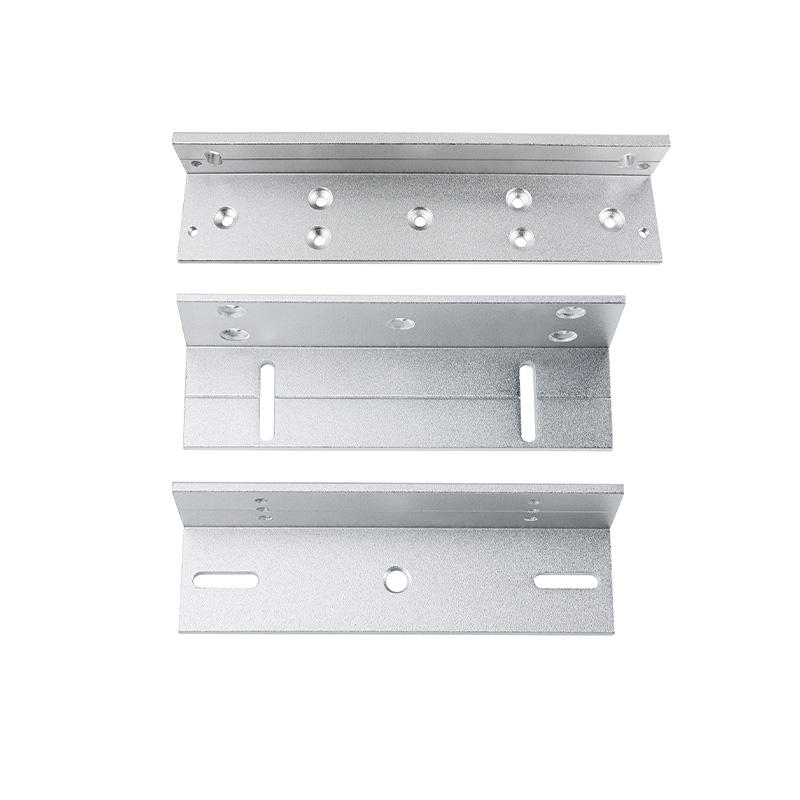

A Z&L bracket set includes three pieces: the L-bracket that mounts the lock body, the Z-bracket that connects to the door frame, and the mounting plate. Together they bridge the gap between the lock and the door — letting you install a surface-mounted maglock on doors that can’t accept direct drilling.
Why You Need It for Glass Doors

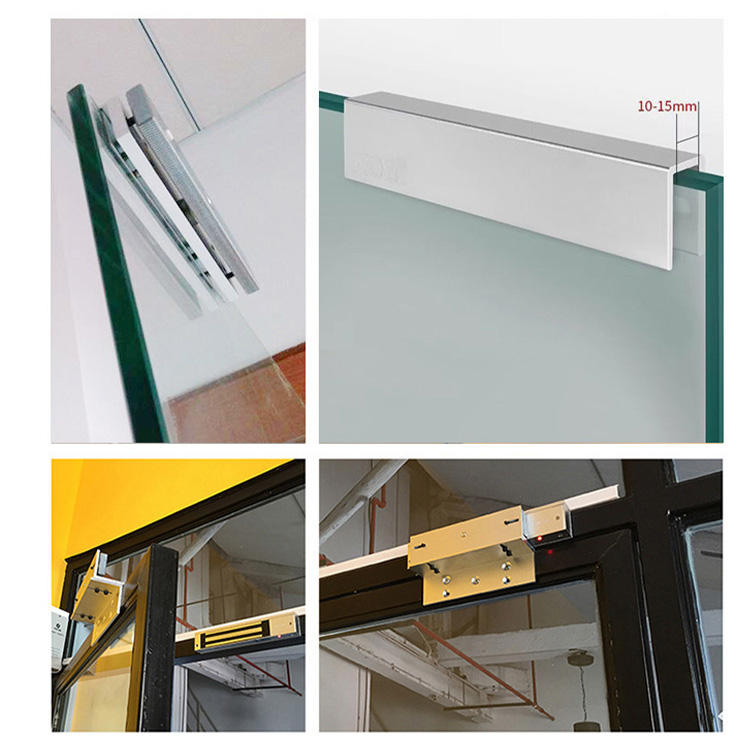

Glass doors can’t be drilled directly for a maglock — the glass would crack. The Z-bracket mounts to the aluminum frame around the glass, and the L-bracket holds the lock body in the right position. The result: a clean, secure installation on 10-15mm thick glass doors without touching the glass itself.
Precision-Machined for a Perfect Fit
The SK-ZL180 is precision-machined from magnesium-aluminum alloy with a sandblasted silver finish. Pre-drilled holes match the 180kg maglock exactly, so installation is fast and secure. The anti-rust finish holds up indoors and in covered outdoor entrances.
Specifications
- Compatible lock: 180kg electromagnetic lock
- Material: Magnesium-aluminum alloy

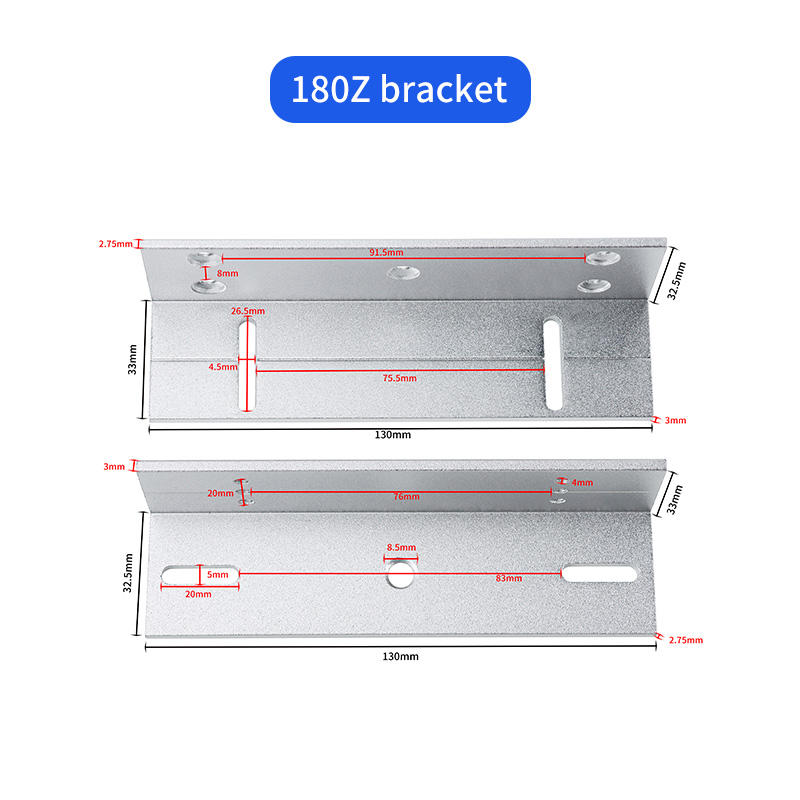

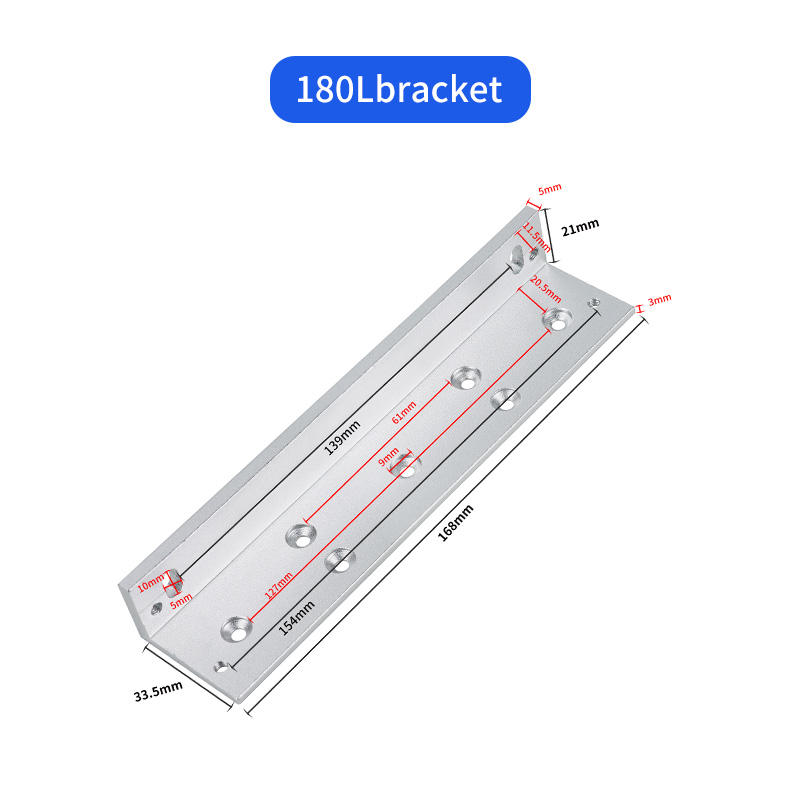

- Dimension: 173 x 22 x 40 mm
- Finish: Sandblasted, silver
- Glass thickness: 10-15mm
- Set includes: L-bracket, Z-bracket, mounting plate
Where the Z&L Bracket Fits Best
- Glass storefronts – 10-15mm thick glass doors.
- Narrow aluminum frames – frames too narrow for direct mounting.
- Wooden doors – when the lock body needs offset clearance.
- Metal doors – when the frame profile doesn’t match.
Getting Started
As an OEM/ODM manufacturer, we supply the SK-ZL180 with custom logo and packaging options for distributors and installers. Contact us for samples, bulk pricing or OEM/ODM customization.
