Waterproof U-Type Bracket for Outdoor Glass Doors
When a maglock goes on an outdoor glass door, water gets in. The SK-U180 U-type mounting bracket solves that — the U-shaped design wraps around the glass edge to keep rain out of the lock connection.
Why a U-Type Bracket Is Better Outdoors
A standard flat bracket sits on top of the glass edge — rain can seep underneath and reach the lock connection. The U-type bracket wraps around the edge, creating a sealed channel that keeps moisture out. That’s the difference between a bracket that lasts outdoors and one that corrodes in a season.

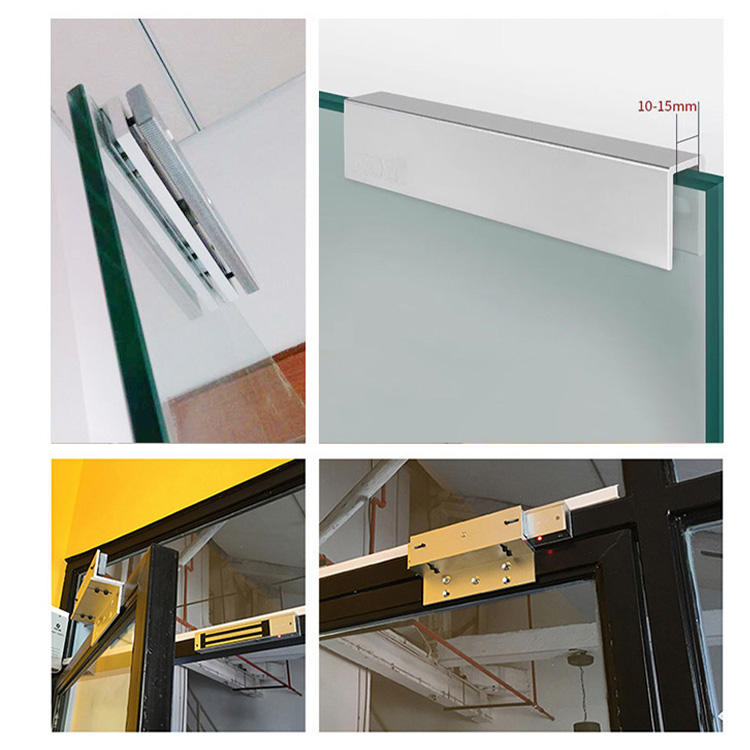

Glass Door Installation Without Drilling Glass
The U-bracket clamps onto the glass edge — no drilling into the glass itself. The lock body mounts on top, and the armature plate mounts on the door panel. It works on 10-15mm thick glass doors, the most common thickness for commercial glass entrances.
Precision-Machined for 180kg Locks

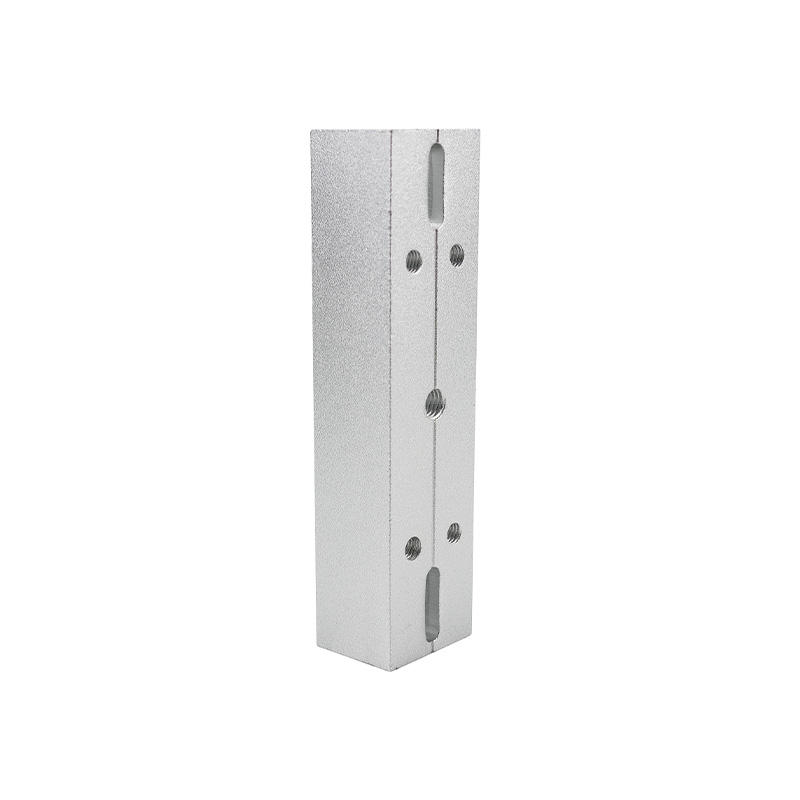

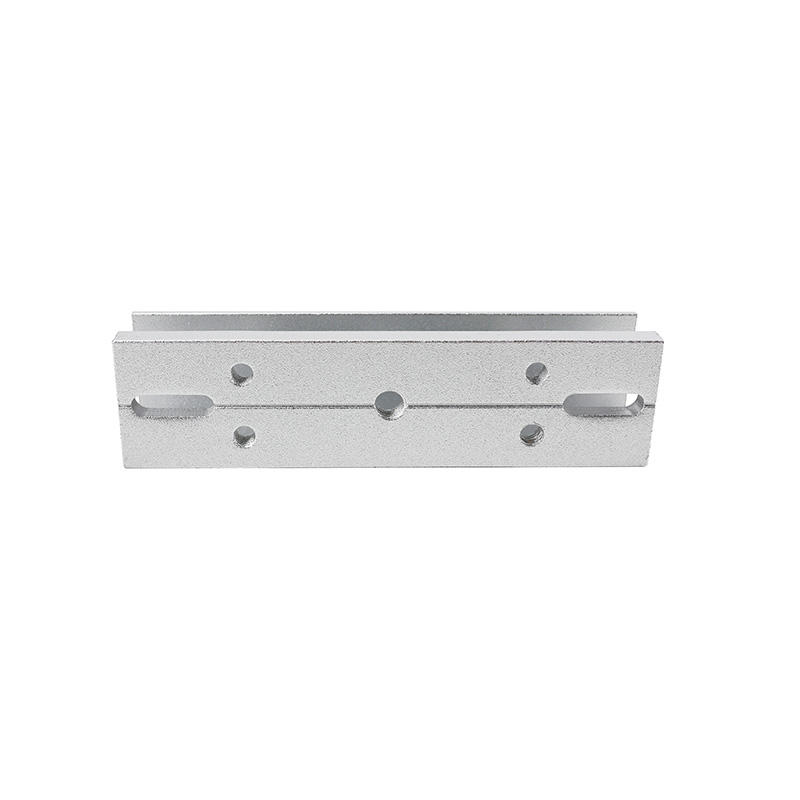

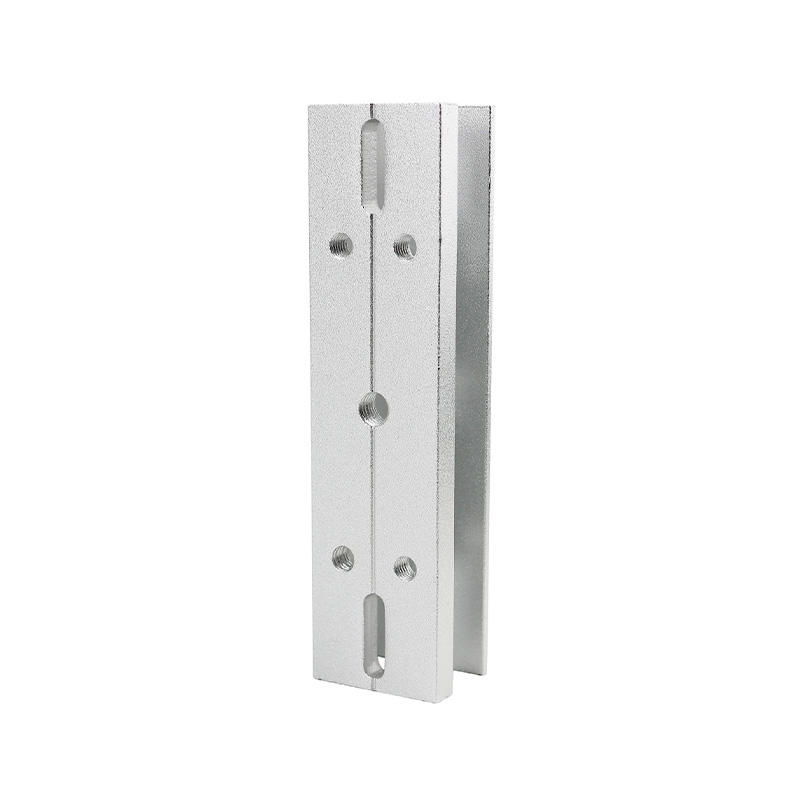

The SK-U180 is precision-machined from magnesium-aluminum alloy with a sandblasted silver finish. Pre-drilled holes match the 180kg maglock exactly. The compact 130mm body fits standard 180kg locks without modification, and the anti-rust finish holds up outdoors and in covered entrances.
Specifications
- Compatible lock: 180kg electromagnetic lock
- Material: Magnesium-aluminum alloy

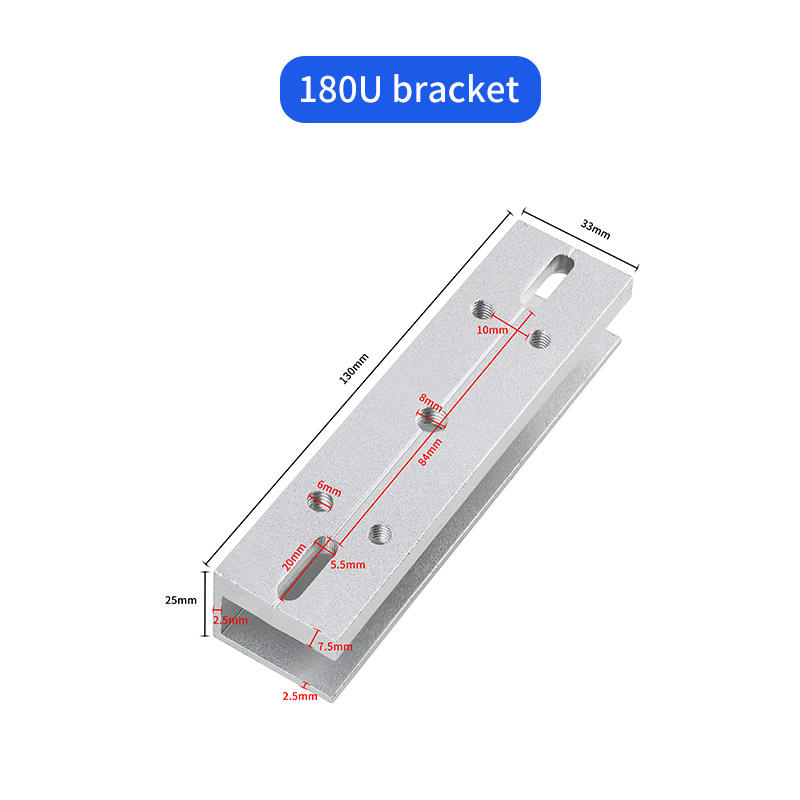

- Dimension: 130 x 33 x 26 mm
- Finish: Sandblasted, silver
- Glass thickness: 10-15mm
- Design: U-type, waterproof
Where the U-Type Bracket Fits Best
- Outdoor glass entrances – storefronts exposed to rain.
- Covered porches – semi-exposed entry points.
- Gate access – glass gates and fence entrances.
- Pool/garden gates – moisture-exposed outdoor locks.
Getting Started
As an OEM/ODM manufacturer, we supply the SK-U180 with custom logo and packaging options for distributors and installers. Contact us for samples, bulk pricing or OEM/ODM customization.
