Recessed Magnetic Lock: A 280KG Concealed Maglock for Clean Access Control
Most maglocks hang visibly on the door frame. The SK-FM280 recessed magnetic lock is different: it mounts inside aluminum profiles and frames, so the lock line disappears and the entrance stays clean.
What Makes a Recessed Maglock Different
A standard maglock bolts onto the frame surface. A recessed maglock is set into the aluminum profile, holding the door from inside the frame. The visual result is a flush, uninterrupted entrance line — preferred for glass shopfronts, offices and modern gates.

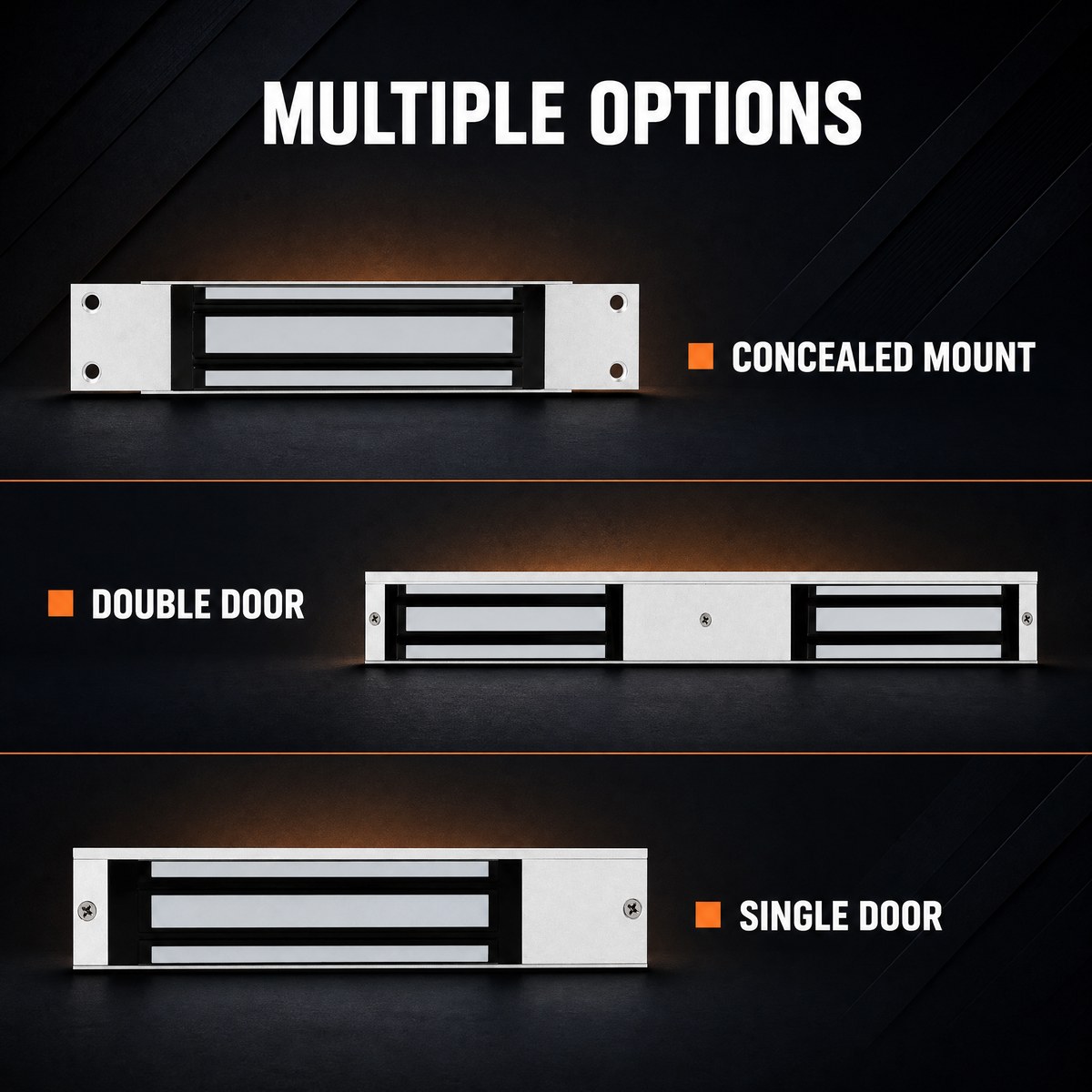

Three Mounting Options
- Concealed mount – fully hidden inside the aluminum profile.
- Double door – one lock spans two door leaves.
- Single door – compact version for standard openings.
Fail-Safe and Low Power
Rated at 280kg / 600lbs holding force, the SK-FM280 is fail-safe: when power is cut, the lock releases instantly for safe egress. Low power consumption keeps it economical for 24/7 access control operation.
Built for Outdoor Use
The aluminum alloy body is lightweight yet highly corrosion-resistant, and the sealed construction is waterproof and anti-rust — so it survives rain and humidity on gates and exterior entrances.
Specifications
- Holding force: 280kg / 600lbs
- Working mode: Fail-safe (unlocks on power loss)
- Power: DC 12V
- Mounting: Recessed / concealed
- Material: Aluminum alloy

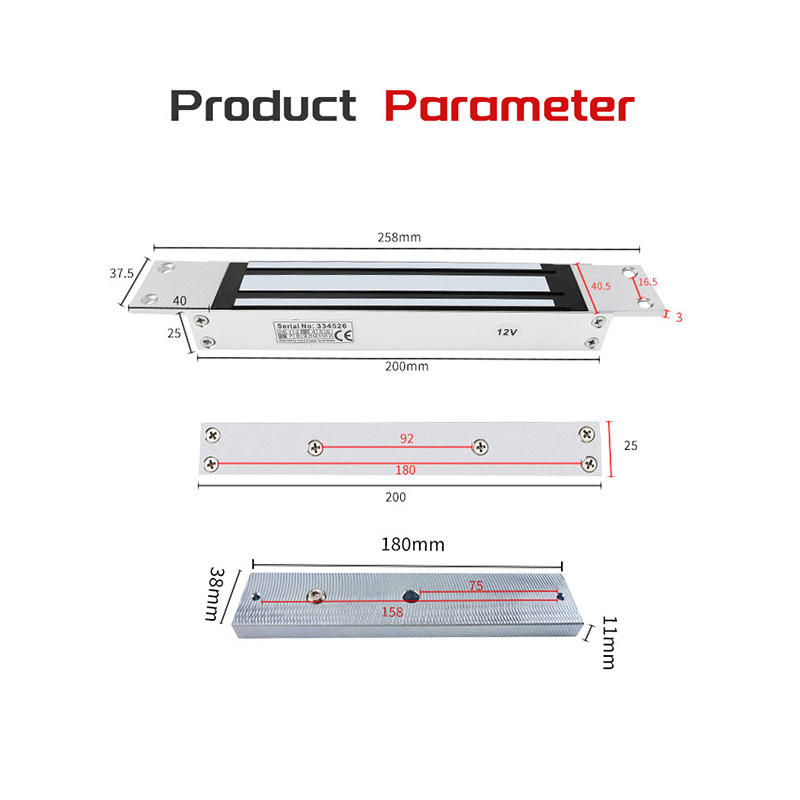

- Dimension: 258 x 42 x 27 mm
Getting Started
As an OEM/ODM manufacturer, we supply the SK-FM280 with custom logo and packaging options for distributors and installers. Contact us for samples, bulk pricing or OEM/ODM customization.
