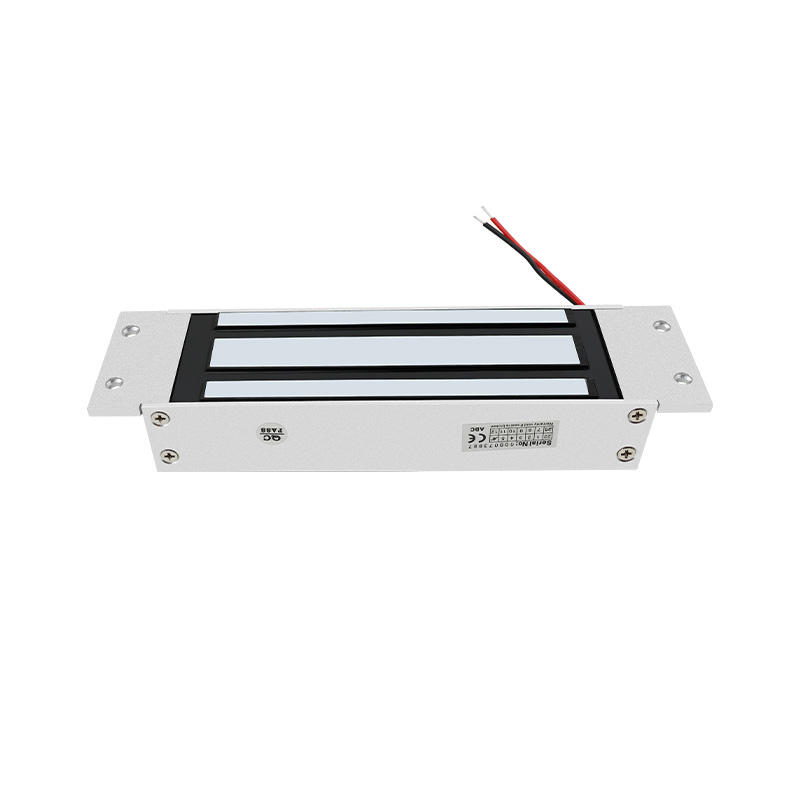

Recessed Magnetic Lock SK-FM500 – 500KG Concealed Electromagnetic Lock for Hidden Installation

500KG Concealed / Recessed Electromagnetic Lock

The SK-FM500 is a heavy-duty 500kg / 1200lbs recessed magnetic lock designed for concealed installation. It hides inside the door frame for a clean, flush finish, delivers maximum holding force, and unlocks automatically on power loss for fail-safe exit.

Key Features

• 500kg / 1200lbs holding force – the highest in our recessed maglock range.
• Concealed / recessed design – installs inside the frame for a clean flush look.
• Fail-safe operation – unlocks automatically on power cut for safe egress.
• Anti-rust aluminum body – magnesium-aluminum alloy for long service life.
• Waterproof & durable – sealed construction resists humidity and weather.
• Wide compatibility – glass, wood, fire-rated and metal doors, gates.

Specifications

Model	SK-FM500
Holding force	500kg / 1200lbs
Working mode	Fail-safe (unlocks on power loss)
Power	DC 12V
Material	Magnesium-aluminum alloy
Lock body dimension	258 x 65 x 39 mm
Color	Silver
Applications	Concealed doors, glass/wood/fire/metal doors, gates, high-security entrances

Applications

The SK-FM500 suits concealed glass doors, wooden doors, fire-rated doors and metal gates where a surface-mounted lock would spoil the clean look. It’s ideal for high-security installations where both aesthetics and maximum holding force matter. As an OEM/ODM manufacturer, we supply it with custom logo and packaging options for distributors and project buyers worldwide.

Contact us for bulk pricing, samples or OEM/ODM customization.
