IP66 Waterproof Fingerprint Keypad Access Controller SK-F12BLE – 500 Fingerprints, 1000 Cards, TTLock App, Bluetooth/WiFi

Fingerprint Keypad Access Controller for Indoor and Outdoor Doors

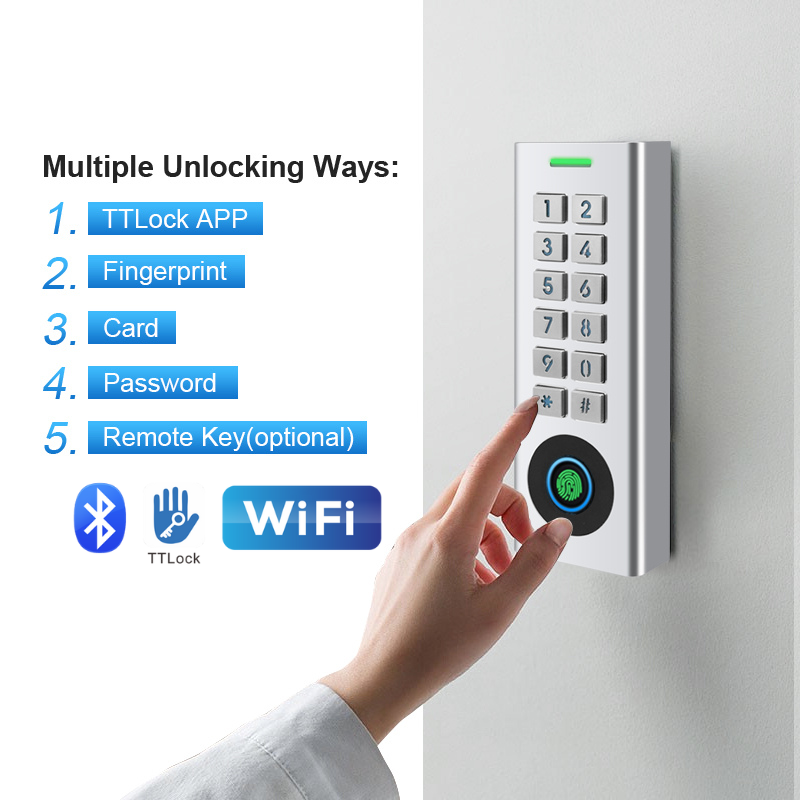

The SK-F12BLE is an IP66 waterproof access controller that combines a mechanical keypad, fingerprint sensor and 13.56MHz card reader in a zinc alloy body. Managed through the TTLock app over Bluetooth or Bluetooth+WiFi, it gives you fingerprint, card, PIN, smartphone and optional remote-key access in one weatherproof unit.

Key Features

• IP66 waterproof rating – withstands harsh weather for indoor and outdoor use.
• 500 fingerprints + 1000 cards – large capacity for families, offices and buildings.
• TTLock app management – add or delete users, check opening records, issue temporary codes from your phone.
• Multiple access modes – smartphone, fingerprint, card, PIN and optional remote key.
• Bluetooth or Bluetooth+WiFi versions – unlock offline or remotely over WiFi.
• Zinc alloy housing – durable and tamper-resistant for long-term performance.
• 250 custom passwords – plus unlimited dynamic passwords.
• -20°C to +60°C – reliable in most climates.
• FCC / CE certified – export-ready compliance.

Specifications

Model	SK-F12BLE
Access methods	Fingerprint / Card / PIN / Smartphone App / Remote Key (optional)
App	TTLock (Bluetooth / Bluetooth+WiFi)
Waterproof rating	IP66
Card type	13.56MHz Mifare card
User capacity	1000 cards / 500 fingerprints / 250 custom PINs; unlimited dynamic passwords
App features	Add/delete users, opening records, E-keys, temporary codes
Material	Zinc alloy
Working temperature	-20°C to +60°C
Certifications	FCC, CE
Applications	Gates, building entrances, offices, warehouses

Applications

From villa gates to office doors and warehouse entrances, the SK-F12BLE delivers fast fingerprint entry plus card, PIN and app options from one metal unit. As a smart lock and access control OEM/ODM manufacturer, we supply it with custom logo, packaging and user manual options for distributors and project buyers worldwide.

Contact us for bulk pricing, samples or OEM/ODM customization.
