Double Door Electromagnetic Lock: The 280KG Fail-Secure Solution for Wide Entrances
Double doors need a lock that spans both leaves. The SK-280S double door electromagnetic lock uses a 500mm body to hold two door leaves with 280kg / 600lbs of combined magnetic force.
Why a Double-Door Maglock
On glass or aluminum double doors, a single-door maglock secures only one leaf. The 500mm SK-280S body aligns with both leaves so the magnetic contact surface and armature plates close the gap evenly — no sag, no gap, no rattling.

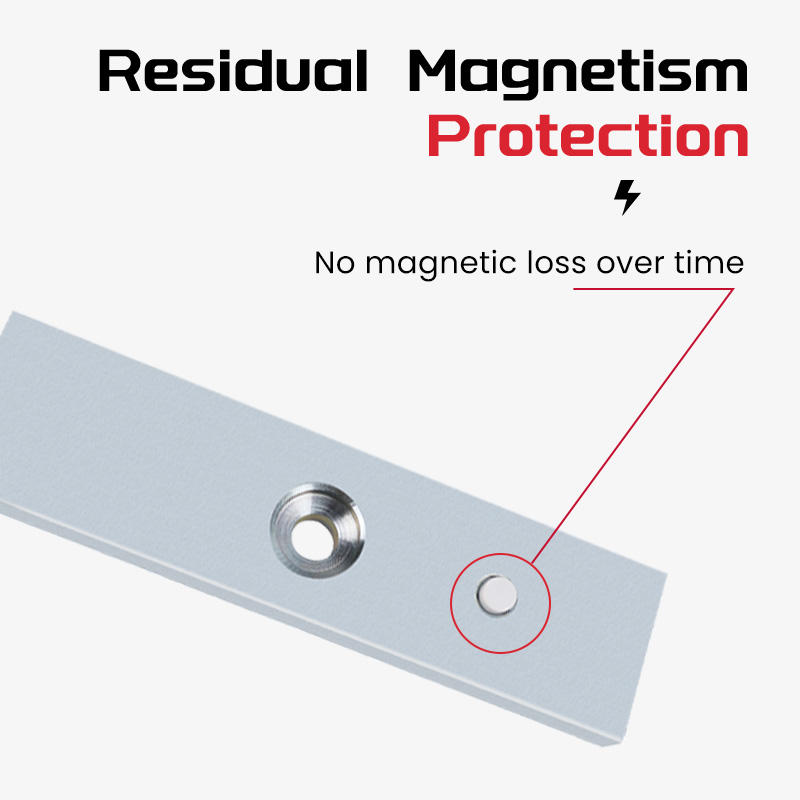

Residual Magnetism Protection
Over time, some maglocks hold residual magnetism and release slowly. The SK-280S is engineered with residual magnetism protection so there is no magnetic loss over time and doors release cleanly every time.
Status Feedback for Access Control

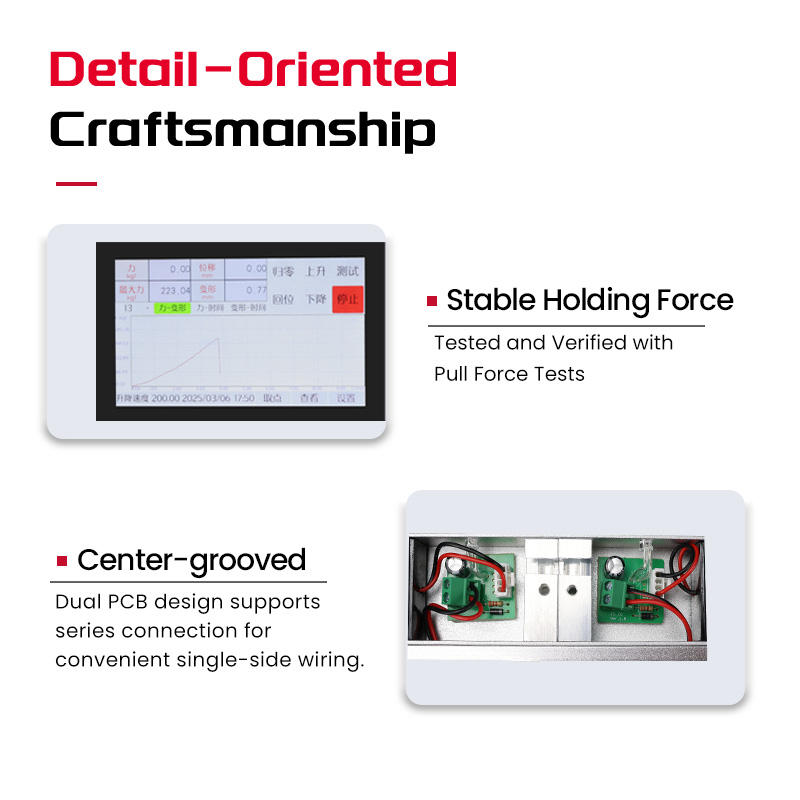

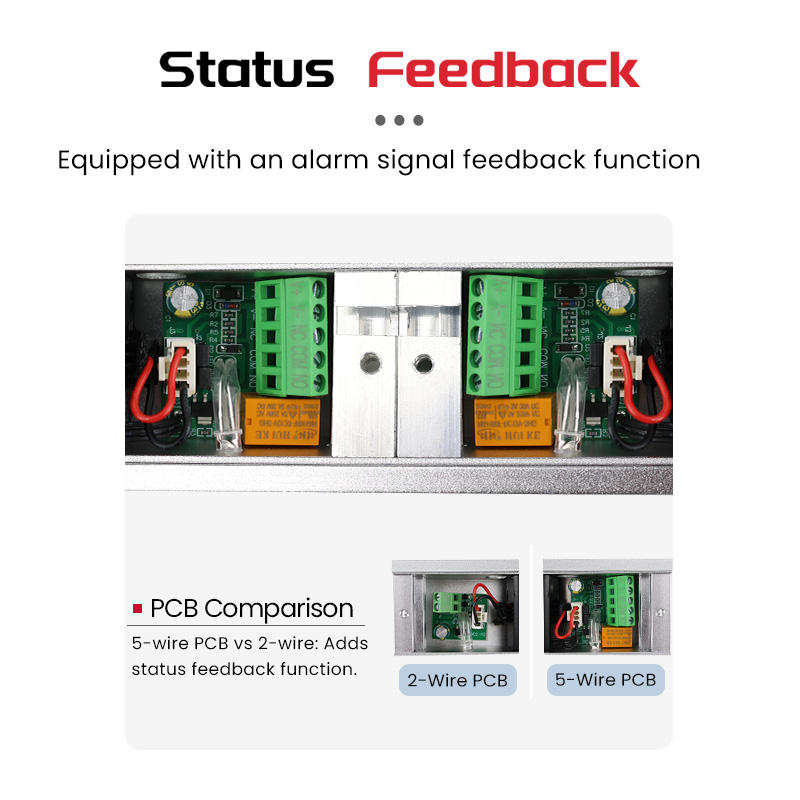

The 5-wire PCB adds door status and alarm signal feedback compared with a basic 2-wire lock, so your access controller knows exactly when the door is open or closed. A center-grooved dual-PCB design also supports series connection for convenient single-side wiring on the door frame.
Fail-Safe Release for Fire Compliance
Power loss means the lock opens — the fail-safe rule behind fire codes. When the fire alarm cuts the circuit, both door leaves release automatically so people can exit without keys or panic hardware.
Specifications
- Holding force: 280kg / 600lbs
- Working mode: Fail-safe (unlocks on power loss)
- Power: DC 12V
- Signal: 5-wire feedback with alarm signal
- Material: Magnesium-aluminum alloy

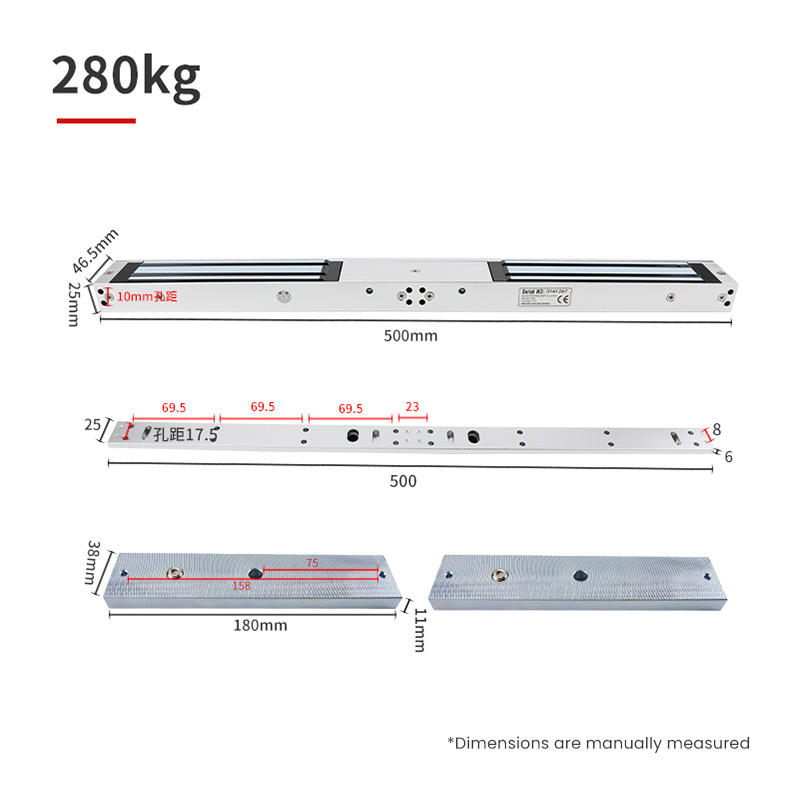

- Dimension: 500 x 48 x 28 mm
Where It Works Best
- Glass double doors – office entrances and storefronts.
- Fire-rated double doors – fail-safe release in emergencies.
- Hospitals and schools – wide corridor access points.
- Wood and metal double doors – universal mounting kit.
Getting Started
As an OEM/ODM manufacturer, we supply the SK-280S with custom logo and packaging options for distributors and installers. Contact us for samples, bulk pricing or OEM/ODM customization.
