280KG Z&L Mounting Bracket: Heavy-Duty Glass Door Installation
For heavy glass doors and narrow aluminum frames, the SK-ZL280 Z&L mounting bracket adapts your 280kg maglock to surfaces where direct mounting isn’t possible — with the strength to hold a heavy-duty lock.
Why a 280KG Bracket Needs to Be Stronger
A 280kg maglock generates more holding force than a 180kg unit. The bracket has to handle that extra leverage — that’s why the SK-ZL280 is precision-machined from thicker magnesium-aluminum alloy with a reinforced structure. It’s not just a 180kg bracket scaled up; it’s engineered for the higher forces of a heavy-duty lock.

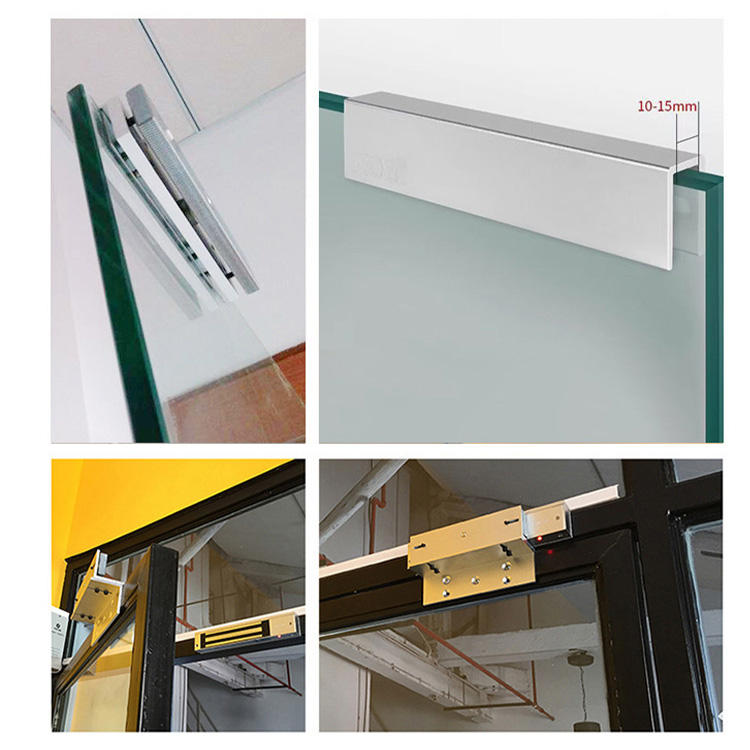

Glass Door Installation Without Drilling Glass

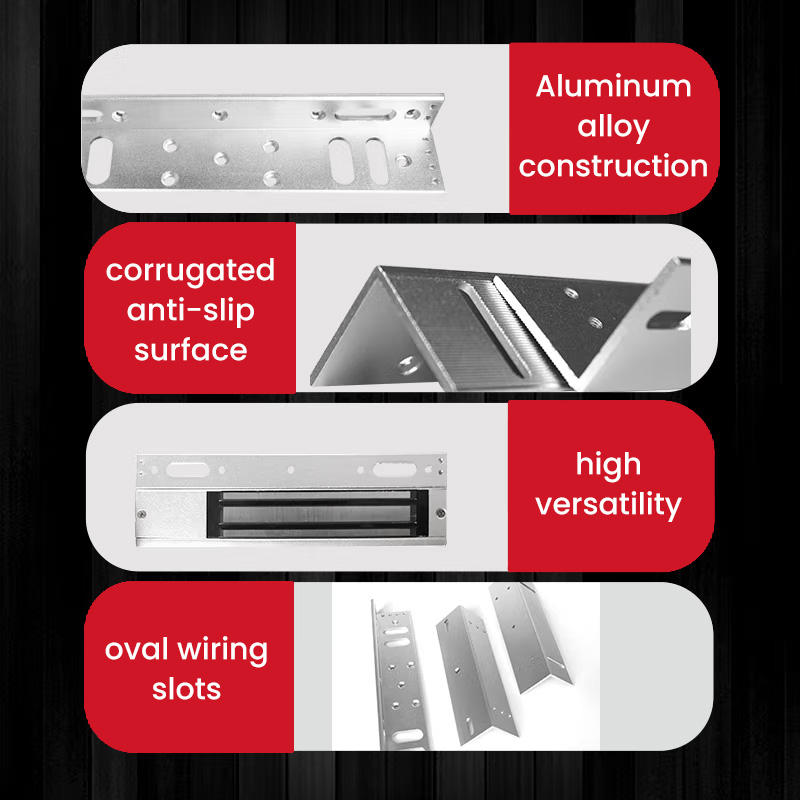

The Z-bracket mounts to the aluminum frame around the glass, and the L-bracket holds the lock body in the exact right position. The result: a clean, secure installation on 10-15mm thick glass doors — without ever touching the glass itself. The oval wiring slots make cable routing neat and adjustable.
What’s in the Box

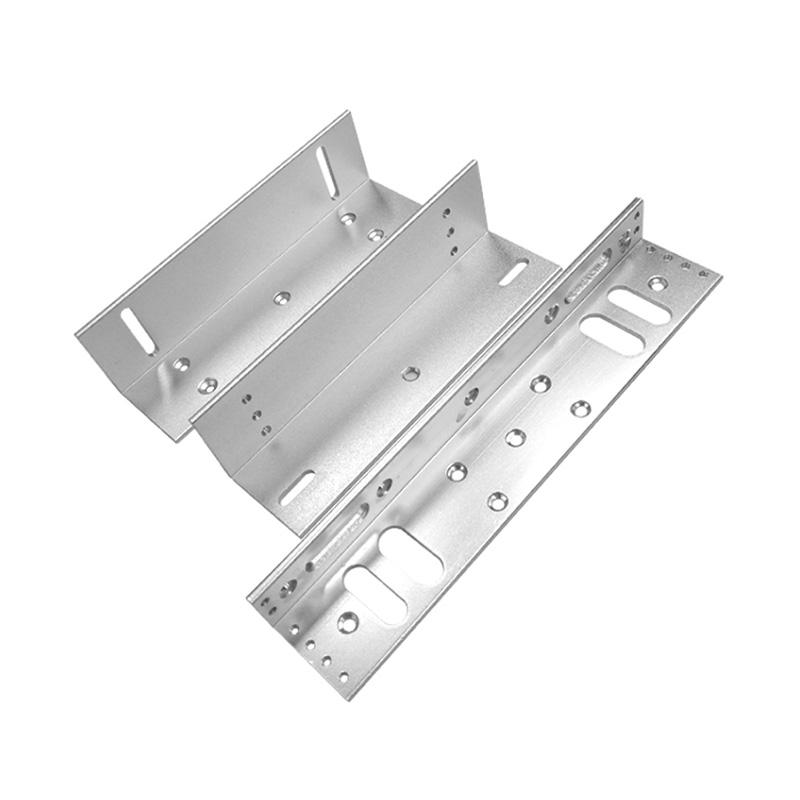

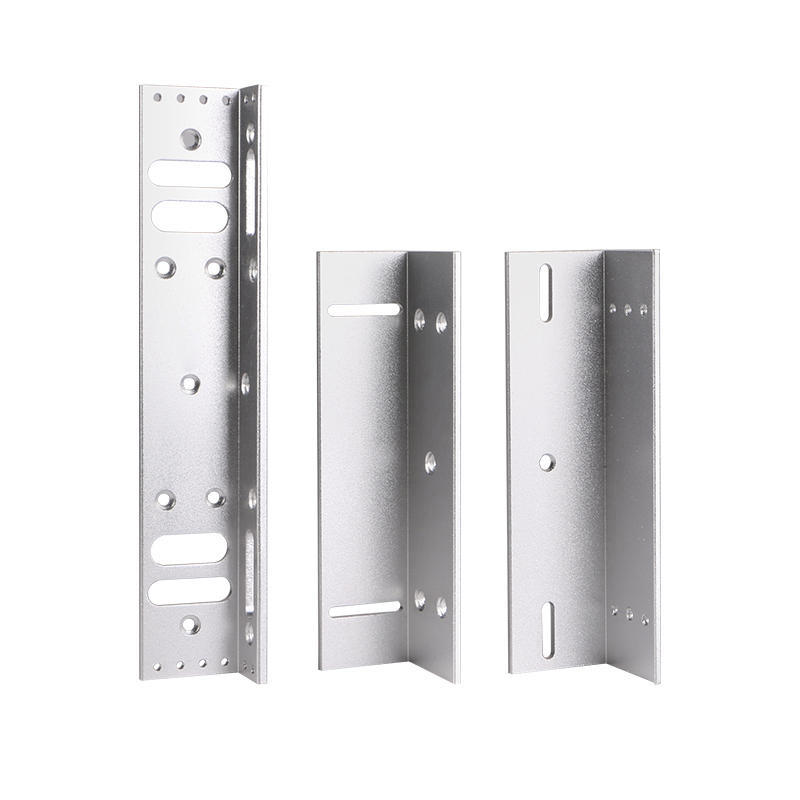

The SK-ZL280 set includes three pieces: the L-bracket that mounts the lock body, the Z-bracket that connects to the door frame, and the mounting plate. Pre-drilled holes match the 280kg maglock exactly, so installation is fast and secure. The sandblasted silver finish resists rust and looks clean on premium doors.
Specifications
- Compatible lock: 280kg electromagnetic lock
- Material: Magnesium-aluminum alloy

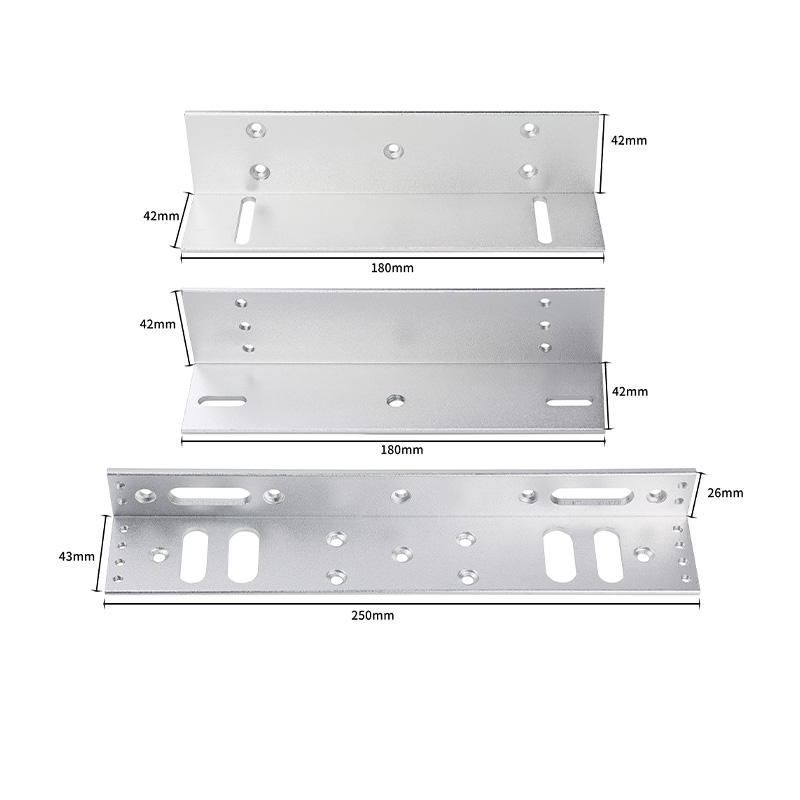

- Dimension: 250 x 48 x 29 mm
- Finish: Sandblasted, silver
- Glass thickness: 10-15mm
- Set includes: L-bracket, Z-bracket, mounting plate
Where the 280KG Bracket Fits Best
- Heavy glass storefronts – commercial entrances with high traffic.
- Narrow aluminum frames – frames too narrow for direct mounting.
- Metal entrance doors – when the frame profile doesn’t match.
- Gate access – heavy-duty gate and fence entry points.
Getting Started
As an OEM/ODM manufacturer, we supply the SK-ZL280 with custom logo and packaging options for distributors and installers. Contact us for samples, bulk pricing or OEM/ODM customization.
