180KG Double Door Electromagnetic Lock: Compact Strength for Double-Leaf Doors

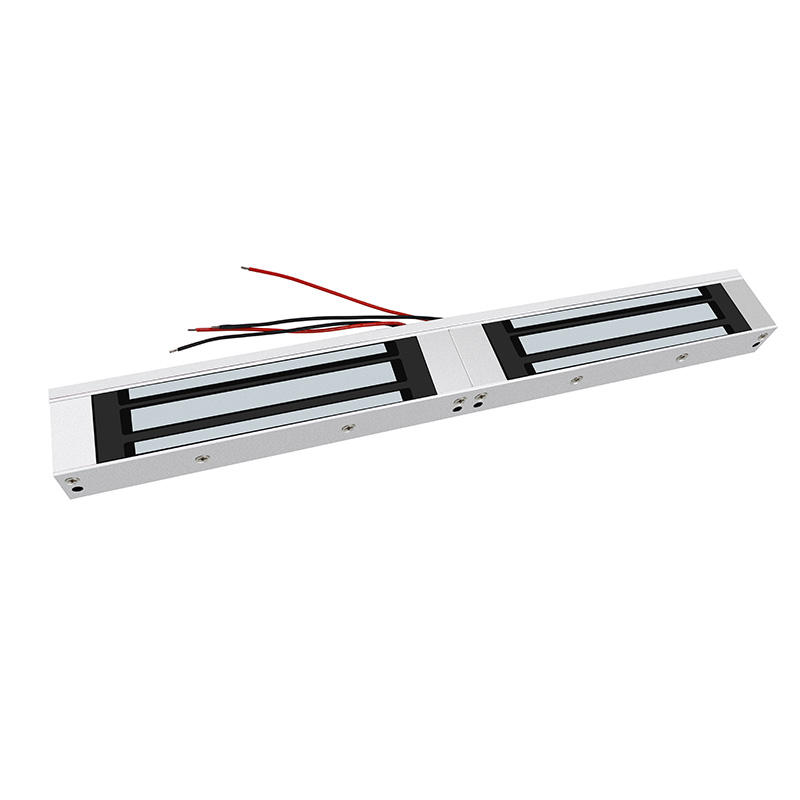

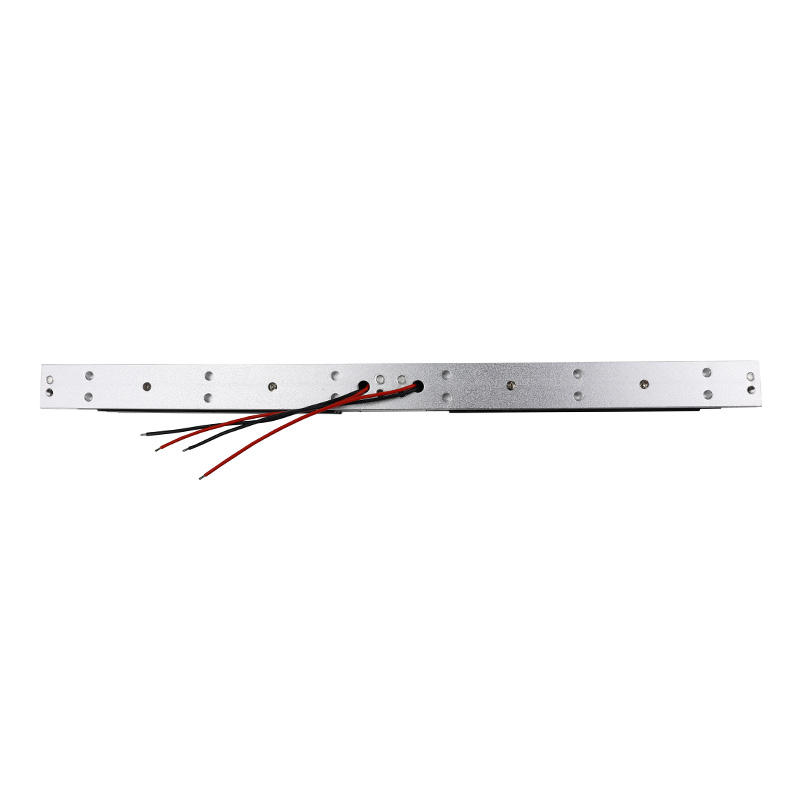

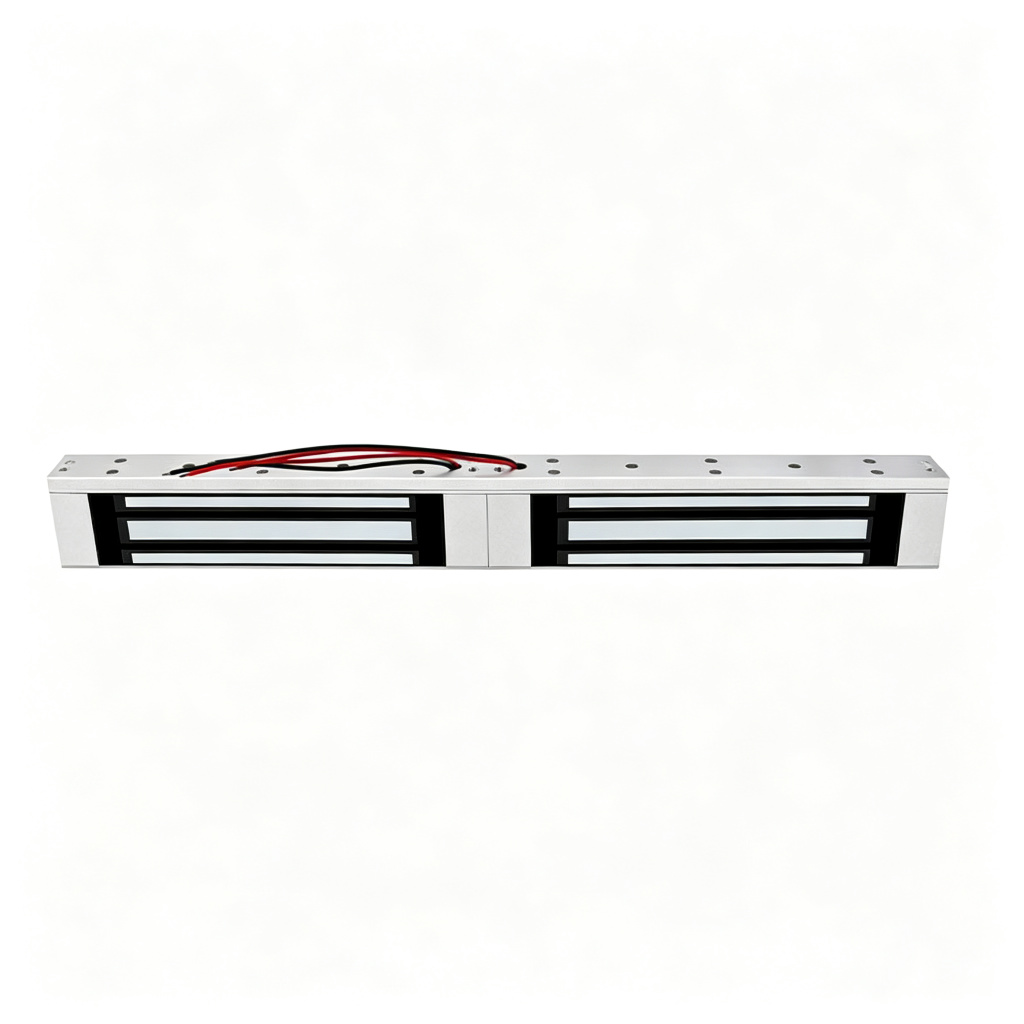

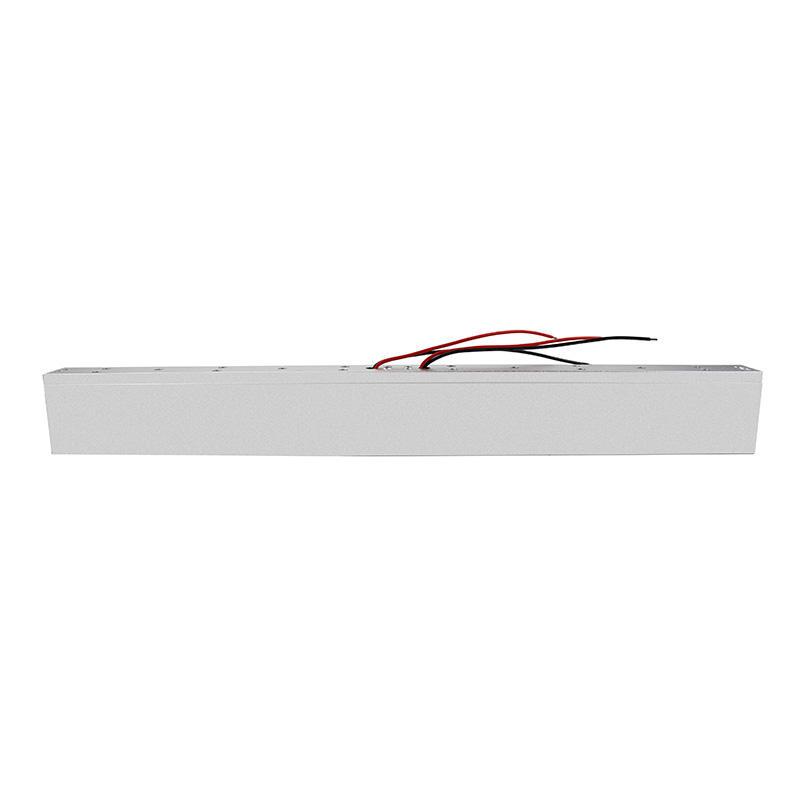

Double-leaf doors need a lock that spans both leaves. The SK-180S double-door electromagnetic lock delivers 180kg of holding force in a single slim 336mm body.
Why a Double-Door Maglock
A single-door lock only secures one leaf. For double glass doors, wooden double doors and fire-rated double doors, you need a lock that holds both leaves at once. The SK-180S integrates two magnetic coils in one slim housing, so one controller locks the entire pair.
Compact but Reliable
At 180kg, this lock is sized for light-to-medium double doors — enough holding force for glass storefronts, office double doors and residential double-leaf entrances without the bulk of a 280kg unit. The slim 336mm body fits standard double-door frames.
Fail-Safe and Waterproof
Like every maglock in our range, the SK-180S is fail-safe: when power is cut, both leaves release instantly for safe egress. The sealed magnesium-aluminum body is waterproof and anti-rust, so it holds up indoors and in covered outdoor entrances.
Specifications
- Holding force: 180kg
- Working mode: Fail-safe (unlocks on power loss)
- Power: DC 12V
- Material: Magnesium-aluminum alloy

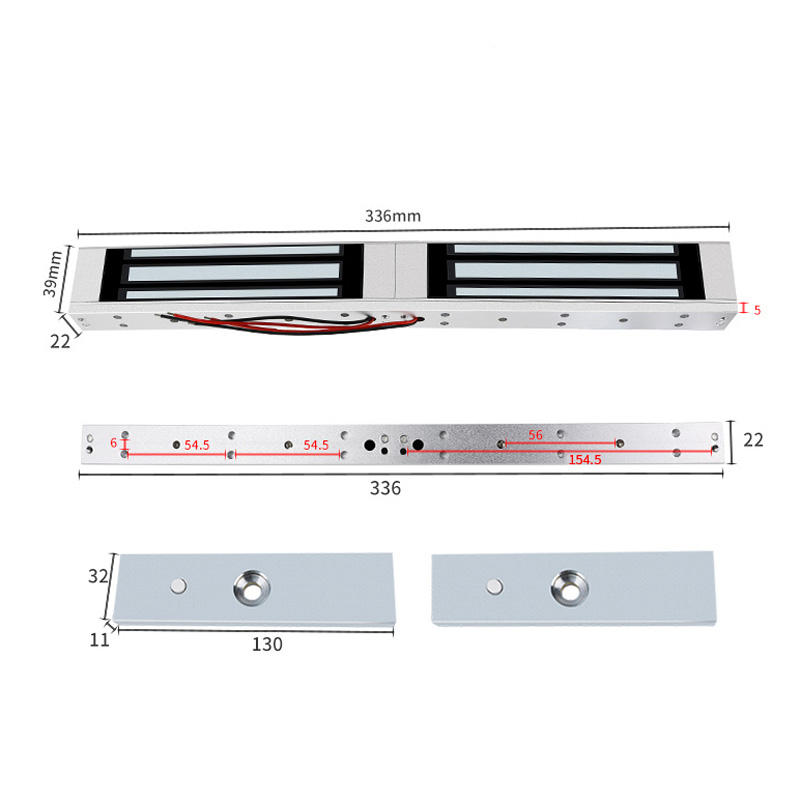

- Dimension: 336 x 39 x 22 mm
Where the 180KG Double-Door Lock Fits Best
- Double glass doors – storefronts, offices and shops.
- Double wooden doors – residential entrances and meeting rooms.
- Fire-rated double doors – fail-safe release under fire code.
- Metal double doors – industrial and warehouse access.
Getting Started
As an OEM/ODM manufacturer, we supply the SK-180S with custom logo and packaging options for distributors and installers. Contact us for samples, bulk pricing or OEM/ODM customization.
